CL-L01
Diversified appearance
2 effcient led chips,efficient heat dissipation, LED intelligent controller，power consumption decreased by 50%, luminance increase by 30%, Be much clearer in fog days.
Chip type
Two 55mil triple crystals
Lens specifications
Dual lens
Drive
Built in
Light Shape Effect Evaluation
☆☆
Suggested configuration
One can serve as the main light source
- Product Description
-
Technical parameters
Item no. CL-L01-001 CL-L01-003 CL-L01-012 CL-L01-014 Shell material Aluminum & PEI Holder Aluminum & PEI Holder Aluminum & PEI Holder Aluminum & PC Holder LED Q'TY 2 2 2 2 LED chips 3 chips&4 chips (available) 3 chips&4 chips (available) 3 chips&4 chips (available) 3 chips&4 chips (available) LED consumption 26w&40w(optional) 26w&40w(optional) 26w&40w(optional) 26w&40w(optional) Glass Size 76mm Specific glass Square (I-1) 69mm Accessbly installation (1-2) len group ( 1-3,1-4) Installation (I-2) len group(i-3,1-4) Installation (I-1) len group(I-1,I-1) Installation (I-1) len group(I-1,I-1) LED control mode native driver / external driver ( optional) Native driver/external driver(optional) Native driver/external driver(optional) Native driver/external driver(Available) LED driving current 2.2A 2.2A 2.2A 2.2A Luminance 4 chips x2:160-170LuX 1 3 chips X2:130-145Lux 4 chips x2:120-130Lux / 3 chipsX2:110-115Lux 4 Chips*2; 145-150Lux 1 3 ChipsX2; 120-130Lux 4 Chips*2; 145-150Lux 1 3 ChipsX2; 120-130Lux Color temperature 5700K-6100K 5700K-6100K 5700K-6100K 5700K-6100K Input voltage DC 12-14.5V DC 12-14.5V DC 12-14.5V DC 12-14.5V Light-changing mode Electromagnetic Control Electromagnetic Control Electromagnetic Control Electromagnetic Control Light Machenism DC12-14.5V DC 12-14.5V DC 12-14.5V DC 12-14.5V Lifepan 500000 times 500000 times 500000 times 500000 times REG ECE / SAE / GB(optional) ECE/SAE/GB (optional) ECE/SAE/GB (optional) ECE/SAE/GB L/R driving Optional Optional Optional Available Unit weight len group: 508g/pcs driver: 332g/pcs Len group: 488g/pcs driving motor: 332g/pcs Len group: 523g/pcs driving motor: 332g/pcs Len group: 460g/pcs driving motor: 332g/pcs Environment Temperature:-40℃ to+80℃; humidity:10%-50% Temperature:-40℃ to+80℃; humidity:10%-50% Temperature:-40℃ to+80℃; humidity:10%-50% Temperature:-40℃ to+80℃; humidity:10%-50% Cooling manner Metal conduction+fan cooling Metal conduction+fan cooling Metal conduction+fan cooling Metal conduction+fan cooling Front view

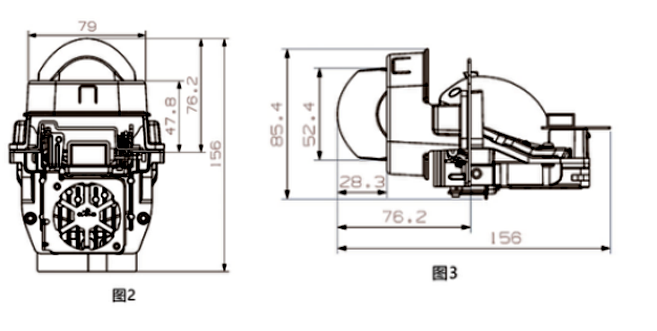

Size
