AL/BL-L03
Diversified appearance
combined with efficient LED lens
LED intelligent controler
lifespan improve up to 50000 hours
Luminance increase by 30%
Be more clear in fog days
combined with efficient LED lens
LED intelligent controler
lifespan improve up to 50000 hours
Luminance increase by 30%
Be more clear in fog days
- Product Description
-
Technical parameters
ITEM NO AL-L03-001 BL-L03-001 Shell Material Aluminum & PC Holder Aluminum & PC Holder LED QTY 1 1 LED Chip 3 chips 3 chips LED consumption 10W 10W Glass Size 55mm 55mm Total Size Installation (1-1) len group (1-2) Installation (1-1) len group (1-2) LED control mode Native Driver/ external driver (available) Native Driver LED driving current 0.7A 0.7A 25m luminance 3 chips: 60-70Lux 3 chips: 35-40Lux Temperature 5700K-6100K 5700K-6100K luminance 1100Lm 1100Lm Input Voltage DC 12-14.5V DC 12-14.5V Light-changing mode High beam Low beam REG ECE/SAE/GB ECE/SAE/GB (optional) L/R driving available available Unit weight Len group: 355g/pcs Len group: 291g/pcs Environment Temp: -40 ℃ to +80℃; Humidity: 10%-50% Temp: -40 ℃ to +80℃; Humidity: 10%-50% Cooling method Metal conduction Metal conduction Front view

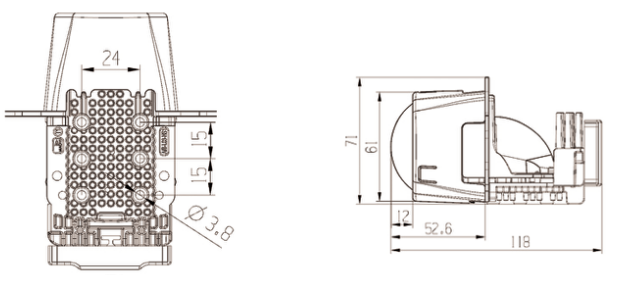

Size
Key words:
Traditional Projector Lens | Led Projector Lens | Led Matrix Modules
