AL/BL-L06
Shell Material: Aluminum
LED QTY: 1
LED Chip: 5 chips
LED consumption: 20w
- Product Description
-
Technical parameters
Item No. AL-L06 BL-L06 Shell Material Aluminum Aluminum LED QTY 1 1 LED Chip 5 chips 5 chips LED consumption 20w 20w Glass Size Total Size Installation (1) lens group (2、3) Installation (1) lens group (2、3) LED control mode Native Driver / external driver (available) Native Driver / external driver (available) LED driving current 2.7A 2.7A 25m luminance 5 chips50Lux(low beam)/ 5 chips110Lux(high beam) 5 chips50Lux(low beam)/ 5 chips110Lux(high beam) Temperature 5700K-6100K 5700K-6100K Input Voltage DC 12-14.5V DC 12-14.5V Light-changing mode Light Machenism Lifetime REG ECE/SAE/GB ECE/SAE/GB L/R driving Available Available Unit weight Lens group: 323g/pcs Lens group: 323g/pcs environment Humidity-40℃ to +80℃;:10%-50% Humidity-40℃ to +80℃;:10%-50% cooling method metal conduction + fan cooling metal conduction + fan cooling Front view

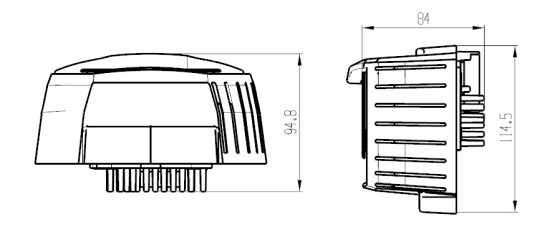

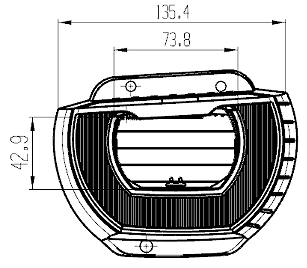

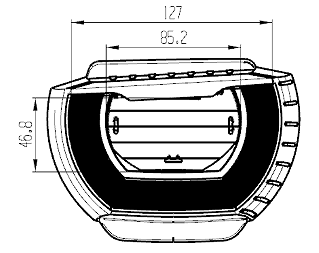

Size
